CAPs конфигурации на MikroTik v.6

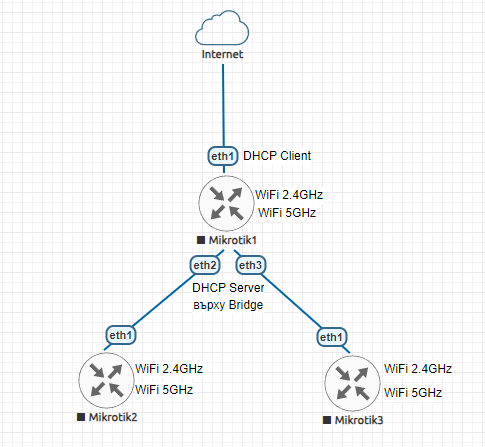

Схемата по която ще работим.

Mikrotik1 - CAPsMAN Mikrotik2 - CAP точка на достъп Mikrotik3 - CAP точка на достъп

Mikrotik1 - CAPsMAN

### Име на Микротика /system identity set name=MikroTik1 ### Дефиниране на wlan интерфейси и сигурност /interface wireless set [ find default-name=wlan1 ] ssid=MikroTik set [ find default-name=wlan2 ] ssid=MikroTik /interface wireless security-profiles set [ find default=yes ] supplicant-identity=MikroTik ### DHCP клиент /ip dhcp-client add disabled=no interface=ether1 ### BRIDGE bridge1 и портове към него /interface bridge add name=bridge1 /interface bridge port add bridge=bridge1 interface=ether2 add bridge=bridge1 interface=ether3 add bridge=bridge1 interface=ether4 add bridge=bridge1 interface=ether5 ### IP адрес на bridge1_LAN /ip address add address=10.0.0.1/24 interface=bridge1 network=10.0.0.0 ### DHCP сървър /ip pool add name=dhcp_pool0 ranges=10.0.0.100-10.0.0.254 /ip dhcp-server add address-pool=dhcp_pool0 disabled=no interface=bridge1 name=dhcp1 /ip dhcp-server network add address=10.0.0.0/24 dns-server=10.0.0.1 gateway=10.0.0.1 ### DNS и Firewall /ip dns set allow-remote-requests=yes /ip firewall nat add action=masquerade chain=srcnat out-interface=ether1 src-address=\ 10.0.0.0/24 ### CAPsMAN # Дефиниране на канали /caps-man channel add band=2ghz-b/g/n control-channel-width=20mhz frequency=2412,2437,2462 \ name=channel24 reselect-interval=1h tx-power=17 add band=5ghz-n/ac control-channel-width=20mhz name=channel5 \ reselect-interval=1h skip-dfs-channels=yes tx-power=23 # Дефиниране на Datapath /caps-man datapath add bridge=bridge1 client-to-client-forwarding=yes local-forwarding=yes name=\ datapath24 add bridge=bridge1 client-to-client-forwarding=yes local-forwarding=yes name=\ datapath5 # Дефиниране на сигурност /caps-man security add authentication-types=wpa2-psk encryption=aes-ccm group-encryption=aes-ccm \ group-key-update=40m name=CAP_Security passphrase=W1F1P@ss # Дефиниране на конфигурации /caps-man configuration add channel=channel24 country=bulgaria datapath=datapath24 mode=ap name=cfg24 \ security=CAP_Security ssid=CAP_Navy24 add channel=channel5 country=bulgaria datapath=datapath5 mode=ap name=cfg5 \ security=CAP_Security ssid=CAP_Navy5 # Дефиниране на provisioning /caps-man provisioning add action=create-dynamic-enabled hw-supported-modes=b,gn \ master-configuration=cfg24 add action=create-dynamic-enabled hw-supported-modes=ac master-configuration=\ cfg5 # Активиране на CAPsMAN /caps-man manager set enabled=yes ### Дефиниране на часова зона /system clock set time-zone-name=Europe/Sofia

Mikrotik2,3 - CAP

### Име на Микротика /system identity set name=MikroTik2 ### Дефиниране на wlan интерфейси и сигурност /interface wireless set [ find default-name=wlan1 ] disabled=no ssid=MikroTik set [ find default-name=wlan2 ] disabled=no ssid=MikroTik /interface wireless security-profiles set [ find default=yes ] supplicant-identity=MikroTik ### DHCP клиент /ip dhcp-client add disabled=no interface=bridge1 ### BRIDGE bridge-wifi и портове към него /interface bridge add name=bridge1 /interface bridge port add bridge=bridge1 interface=ether1 add bridge=bridge1 interface=ether2 add bridge=bridge1 interface=ether3 add bridge=bridge1 interface=ether4 add bridge=bridge1 interface=ether5 ### CAP клиент # Активиране на CAP /interface wireless cap set bridge=bridge1 caps-man-addresses=10.0.0.1 discovery-interfaces=bridge1 \ enabled=yes interfaces=wlan1,wlan2 ### Дефиниране на часова зона /system clock set time-zone-name=Europe/Sofia
