CAPs конфигурации на MikroTik v.7

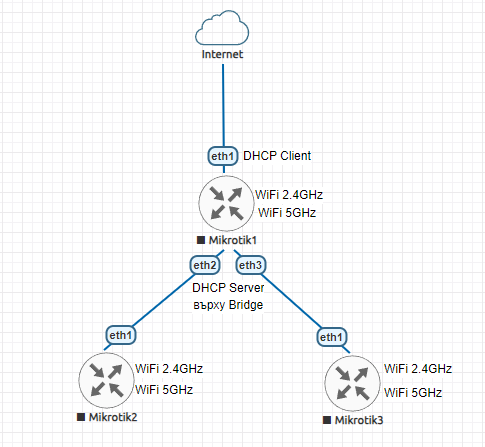

Схемата по която ще работим.

Mikrotik1 - CAPsMAN Mikrotik2 - CAP точка на достъп АХ стандарт Mikrotik3 - CAP точка на достъп АС стандарт

Mikrotik1 - CAPsMAN

### Име на Микротика /system identity set name=Mikrotik1 ### DHCP клиент /ip dhcp-client add interface=ether1 name=client1 ### bridge1_LAN и портове към него /interface bridge add name=bridge1_LAN /interface bridge port add bridge=bridge1_LAN interface=ether2 add bridge=bridge1_LAN interface=ether3 add bridge=bridge1_LAN interface=ether4 add bridge=bridge1_LAN interface=ether5 ### IP адрес на bridge1_LAN /ip address add address=10.0.0.1/24 interface=bridge1_LAN network=10.0.0.0 ### DHCP сървър /ip pool add name=dhcp_pool0 ranges=10.0.0.200-10.0.0.254 /ip dhcp-server add address-pool=dhcp_pool0 interface=bridge1_LAN name=dhcp1 /ip dhcp-server network add address=10.0.0.0/24 dns-server=10.0.0.1 gateway=10.0.0.1 ### DNS и Firewall /ip dns set allow-remote-requests=yes /ip firewall nat add action=masquerade chain=srcnat out-interface=ether1 src-address=\ 10.0.0.0/24 ### CAPsMAN # Дефиниране на канали /interface wifi channel add band=2ghz-ax disabled=no frequency=2412,2437,2462 name=ch-2 \ reselect-time=00:00:00 width=20mhz add band=5ghz-ax disabled=no frequency=5170-5250,5250-5330,5490-5730 name=\ ch-5 width=20/40/80mhz add band=2ghz-n disabled=no frequency=2412,2437,2462 name=ch-2-N \ reselect-time=00:00:00 width=20mhz add band=2ghz-g disabled=no frequency=2412,2437,2462 name=ch-2-G \ reselect-time=00:00:00 width=20mhz add band=5ghz-ac disabled=no frequency=5170-5250,5250-5330,5490-5730 name=\ ch-5-AC skip-dfs-channels=all width=20/40/80mhz # Дефиниране на сигурност /interface wifi security add authentication-types=wpa2-psk,wpa3-psk disabled=no ft=yes ft-over-ds=yes \ management-protection=allowed name=sec1-main # Дефиниране на конфигурации /interface wifi configuration add channel=ch-2 country=Bulgaria disabled=no mode=ap name=cfg-2 security=\ sec1-main ssid=WiFi-2GHz add channel=ch-5 country=Bulgaria disabled=no mode=ap name=cfg-5 security=\ sec1-main ssid=WiFi-5GHz add channel=ch-2-N channel.deprioritize-unii-3-4=no country=Bulgaria \ disabled=no mode=ap name=cfg-2-N security=sec1-main ssid=WiFi-2GHz add channel=ch-2-G channel.deprioritize-unii-3-4=no country=Bulgaria \ disabled=no mode=ap name=cfg-2-G security=sec1-main ssid=WiFi-2GHz \ tx-power=0 add channel=ch-5-AC channel.frequency=5170-5250,5250-5330,5490-5730 country=\ Bulgaria disabled=no mode=ap name=cfg-5-AC security=sec1-main ssid=\ WiFi-5GHz # Дефиниране на provisioning /interface wifi provisioning add action=create-dynamic-enabled comment="2GHz AX" disabled=no \ master-configuration=cfg-2 name-format=2GHz-%I supported-bands=2ghz-ax add action=create-dynamic-enabled comment="2GHz N" disabled=no \ master-configuration=cfg-2-N name-format=2GHz_N-%I supported-bands=2ghz-n add action=create-dynamic-enabled comment="2GHz G" disabled=no \ master-configuration=cfg-2-G name-format=2GHz_G-%I supported-bands=2ghz-g add action=create-dynamic-enabled comment="5GHz AX" disabled=no \ master-configuration=cfg-5 name-format=5GHz-%I supported-bands=5ghz-ax add action=create-dynamic-enabled comment="5GHz AC" disabled=no \ master-configuration=cfg-5-AC name-format=5GHz_AC-%I supported-bands=\ 5ghz-ac # Активиране на CAPsMAN /interface wifi capsman set enabled=yes interfaces=bridge1_LAN ### Дефиниране на часова зона /system clock set time-zone-name=Europe/Sofia

Mikrotik2 - CAP AX

### Име на Микротика /system identity set name=Mikrotik2 ### DHCP клиент /ip dhcp-client add interface=bridge-wifi ### BRIDGE bridge-wifi и портове към него /interface bridge add name=bridge-wifi /interface bridge port add bridge=bridge-wifi interface=ether1 add bridge=bridge-wifi interface=ether3 add bridge=bridge-wifi interface=ether4 add bridge=bridge-wifi interface=ether5 ### CAP клиент # Datapath /interface wifi datapath add bridge=bridge-wifi disabled=no name=data-cap # Конфигуриране на WiFi интерфейси за управление от CAPsMAN /interface wifi set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap \ datapath=data-cap disabled=no set [ find default-name=wifi2 ] configuration.manager=capsman .mode=ap \ datapath=data-cap disabled=no # Активиране на CAP /interface wifi cap set caps-man-addresses=10.0.0.1 enabled=yes slaves-datapath=data-cap ### Дефиниране на часова зона /system clock set time-zone-name=Europe/Sofia

Mikrotik3 - CAP AC

### Име на Микротика /system identity set name=Mikrotik3 ### DHCP клиент /ip dhcp-client add interface=bridge-wifi name=client1 ### BRIDGE bridge-wifi и портове към него /interface bridge add name=bridge-wifi /interface bridge port add bridge=bridge-wifi interface=ether2 add bridge=bridge-wifi interface=ether3 add bridge=bridge-wifi interface=ether4 add bridge=bridge-wifi interface=ether5 ### CAP клиент # Datapath /interface wifi datapath add bridge=bridge-wifi disabled=no name=data-cap # Конфигуриране на WiFi интерфейси за управление от CAPsMAN /interface wifi set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap \ datapath=data-cap disabled=no set [ find default-name=wifi2 ] configuration.manager=capsman .mode=ap \ datapath=data-cap disabled=no # Активиране на CAP /interface wifi cap set caps-man-addresses=10.0.0.1 enabled=yes slaves-datapath=data-cap ### Дефиниране на часова зона /system clock set time-zone-name=Europe/Sofia
